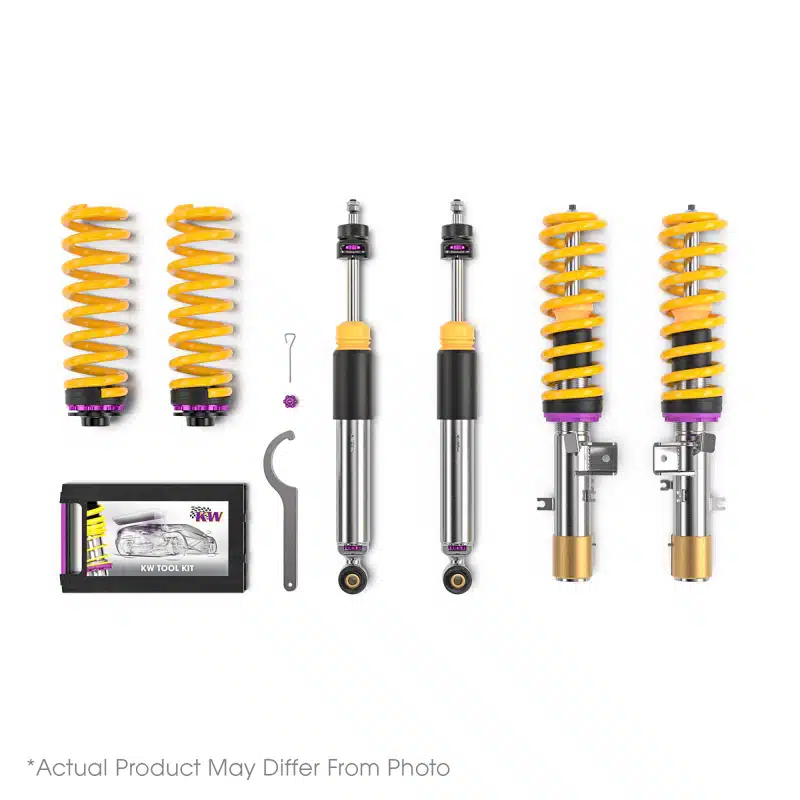

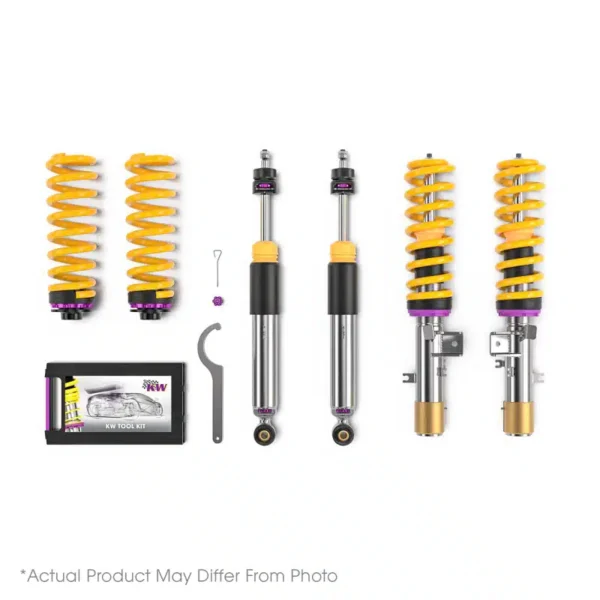

KW V3 Leveling Coilover Kit Bundle for G30 BMW 5 Series with All-Wheel Drive [35208200BZ]
In Stock
KW V3 Leveling Coilover Kit Bundle for G30 BMW 5 Series with All-Wheel Drive
KW’s Coilover Kit Bundle for G30 BMW 5 Series lets compression and rebound be tuned independently to the car in front of you. It is a coilover kit with separately adjustable compression and rebound damping, developed and manufactured by KW in Fichtenberg, Germany and validated on the company’s own 7-post shaker rig before production. The front ride height moves between 0.0 and 0.8 inches below standard and the rear between 0.0 and 0.8 inches, set continuously on the strut body rather than picked from a list of fixed drops, so the car can be corner balanced properly. Pitch and roll under braking, cornering and load change are reduced, body control improves, and the G30 BMW 5 Series responds the way its specification always suggested it could.
Design and Performance
- The Coilover Kit Bundle for G30 is a coilover kit with separately adjustable compression and rebound damping. Damping is valved by KW for this specific application rather than adapted from a generic part, and ride height is set on the strut body so corner weights can be dialled in properly. KW validates every application on its own 7-post shaker rig and supplies the kit ready to install on the listed vehicles.
Features
- The Coilover Kit Bundle for G30 offers separately adjustable compression and rebound damping
- Continuous ride height adjustment on a trapezoidal thread
- High-quality stainless steel damper housing
- Composite spring seat
- Validated on KW’s 7-post shaker rig
- Supplied with a technical component report
- Developed and manufactured in Fichtenberg, Germany
Specifications
- Front ride height adjustment: 0.0 to 0.8 in below factory
- Rear ride height adjustment: 0.0 to 0.8 in below factory
- Damper housing: stainless steel
- Height adjustment: continuous, on the trapezoidal thread
- Damping adjustment: compression and rebound, separately adjustable
- Shipping weight: 66.8 lb
- Carton dimensions: 30 x 18 x 6 in
Applications
- BMW 530i xDrive: G30 | 2017-2023 | 2.0L
- BMW 540d xDrive: G30 | 2018 | 3.0L
- BMW 540i xDrive: G30 | 2017-2023 | 3.0L
Notes
- The factory electronic damping must be deactivated. The deactivation kit needed to do so is included in the delivery, so no separate module is required.
Frequently Asked Questions
- What is the KW Coilover Kit Bundle for G30 made from? KW builds the kit around a high-quality stainless steel damper housing with a composite spring seat and a trapezoidal thread body for continuous height adjustment. It is manufactured at KW’s headquarters in Fichtenberg, Germany, and every application is validated on the company’s own 7-post shaker rig before it enters production.
- Which BMW models does this kit fit? This part number covers the BMW 5 Series built between 2017 and 2023, across 3 listed engine and body variants shown under Applications. Confirm the exact model, drivetrain and suspension options against that list before ordering, because KW builds separate part numbers for closely related versions of the same car.
- How far does the Coilover Kit Bundle for G30 lower the car? Front ride height adjusts between 0.0 and 0.8 inches below factory and the rear between 0.0 and 0.8 inches. Height is set continuously on the trapezoidal thread, so the car can be corner balanced and the setting revised later without changing springs.
- Is this kit suitable for daily driving? Yes. KW valves this kit for road use first and validates it on the 7-post rig against real road inputs, so body control improves without the harshness a track damper brings. Ride height can also be set conservatively to preserve ground clearance for everyday driving.
- Does the Coilover Kit Bundle for G30 need any modification to fit? No. The kit is built as a direct replacement for the factory suspension on the listed applications and installs with normal workshop tools. Read the Notes for this part number first, since some applications require the factory electronic damping to be deactivated or wheel spacers to be run.
- Is this kit covered by a warranty? Yes. KW covers its street coilover kits under a Limited Lifetime Warranty against defects in workmanship and material when bought from an authorised dealer. The warranty covers the original purchaser and excludes racing, commercial and off-road use, and it does not cover removal, installation or shipping costs.
About KW
KW automotive has developed and built suspension in Fichtenberg, Germany since 1995, and supplies coilover systems to vehicle manufacturers, professional tuners and race teams worldwide. Every KW damper is engineered in house, validated on the company’s own 7-post shaker rig and kinematics test benches, and manufactured at the Fichtenberg headquarters rather than sourced from a contract supplier. The application list runs to more than 4,600 fitments, from road cars to GT racing machinery.
